MIL-PRF-423G
NOTES:
1. All dimensions are in inches.
2. Unspecified tolerance is ±0.03.
3. For interpretation of dimensioning and tolerancing, see ASME Y14.5.

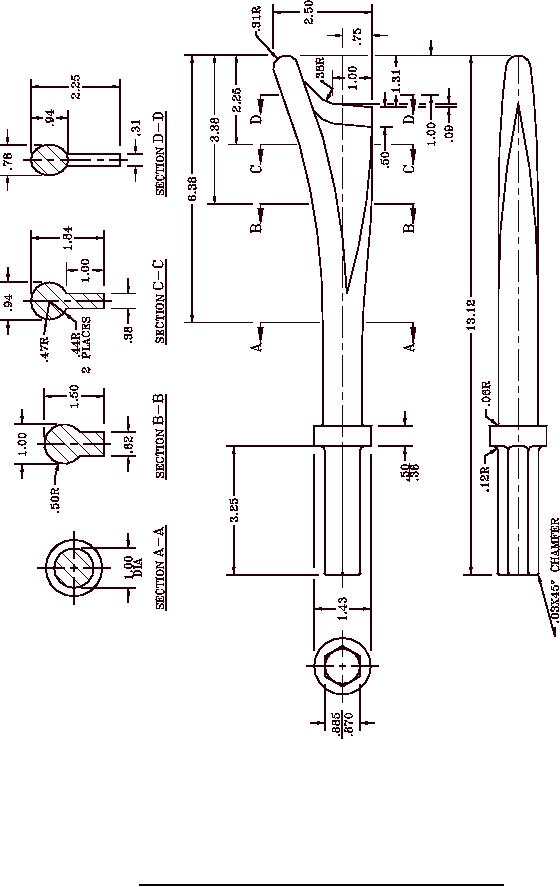

FIGURE 2. Type II (tool for splitting metal drums lengthwise).
9
